The promise of CTCs

ctc bloodstream gif.gif

In the last decade, CTCs have attracted a significant amount of attention for their potential use as a blood-based biomarker for a broad range of cancer-related clinical applications.

CTCs are malignant cells that are shed from the primary and/or metastatic solid tumors and then infiltrate into the vascular and lymphatic systems; these cells play a fundamental role in the metastatic process of non-hematological cancers.

Technologies that efficiently isolate and analyze CTCs from blood can be used to develop assays that could enable early cancer detection and monitor the treatments’ effectiveness. However, the isolation of these malignant cells from blood represents a major technological challenge due to their heterogeneity and extremely low numbers in comparison to blood cells

On average you can find around 40.5 billion cells in 7.5 mL of blood, while a cancer patient may have between 1 and 1000 CTCs in the same volume.

Even though there currently exist multiple cell sorting methods, such as fluorescent-activated cell sorting, magnetic-activated cell sorting, fluorescent-activated droplet sorting, and density gradient centrifugation, these are not compatible with whole blood samples and/or do not have the sufficient sensitivity and specificity to correctly isolate CTCs from blood, which have prevented the development of assays with potential clinical utility... until now.


website cards full size-01.png

Early detection

CTCs have the potential to be used as a biomarker for early cancer detection and recurrence assessment.

website cards full size-02.png

Treatment monitoring

Measuring CTCs levels in cancer patients and monitoring its changes over time has been associated with the effectiveness of applied treatments.

website cards full size-03.png

Personalized medicine

The analysis of CTCs will enable the continuous assessment of mutations that cause therapeutic sensibility or resistance to specific targeted therapies, providing physicians with the necessary information to personalize each patient’s treatment.

website cards full size-04.png

Disease evolution predictor

CTCs can be used as a prognostic indicator of disease progression and overall survival in cancer patients.

website cards full size-05.png

Heterogeneity assessment

Single-cell analysis of CTCs could enable the assessment of cellular heterogeneity, which may improve our understanding of the metastatic process and lead to the development of new therapies.

Our technology has the specificity and sensibility required to successfully isolate and analyze CTCs from blood, which may enable the following clinical applications:

Clinical applications derived from the isolation and analysis of CTCs



The CytoCatch™ technology: taking liquid biopsies from the laboratory to clinical practice

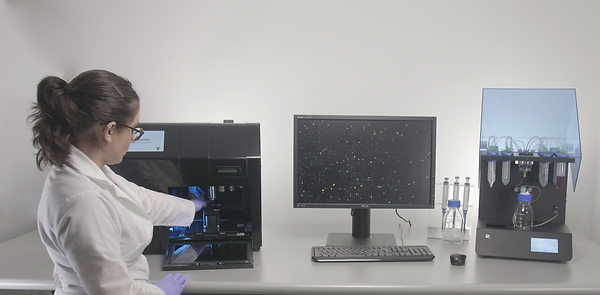

CytoCatch™ is a patent pending technology that consists of an isolation platform and an imaging system created to effectively isolate and analyze CTCs from blood samples.


CytoCatch™ Isolation Platform

Automatically performs the necessary steps to prepare and process the sample, capturing the CTCs contained in it. Once captured, this platform executes an automated protocol to stain the collected cells with fluorescent antibodies for their further analysis with the CytoCatch™ Imaging System.

CytoCatch™ Imaging System


Possesses special routines and machine learning algorithms that analyze the captured cells based on their morphology and the expression of specific markers.

The fact that all these processes are fully automated increases the reliability and reproducibility of the assay by preventing human errors and cell loss due to manual steps. Furthermore, the collected cells are compatible with traditional molecular biology techniques and next generation sequencing technologies, making it possible to perform molecular analyses to assess the genetic characteristics of the captured CTCs.



A powerful tool to unleash the CTCs clinical potential

cancer cell-01.png

No labels required

While many of the technologies developed to isolate CTCs from blood are based on sample enrichment methods that depend on specific antigen-antibody interactions, the principle of separation of the CytoCatch™ isolation platform is based on the differences in size and deformability between blood cells and CTCs, enabling the capture of CTCs without requiring any labels.

cancer cell-02.png

Outstanding recovery rates

Due to their inherent rareness and to avoid losing valuable information, it is fundamental that the platform captures the vast majority of the CTCs present in the sample. The CytoCatch™ technology has recovery rates above 93% when processing 7.5 mL blood samples spiked with tumor cells from prostate, breast, and colorectal cancer cell lines, meaning that the platform recovers at least 93 out of 100 tumor cells spiked into the sample.

cancer cell-03.png

Personalized medicine

The CytoCatch™ technology consists of a fully automated isolation platform and an imaging system that efficiently isolates and analyzes CTCs from blood samples, without human intervention

cancer cell-04.png

High-speed sample processing

The CytoCatch™ isolation platform can process 7.5 mL blood samples in less than 12 minutes, in comparison with other technologies that can only process significantly lower sample amounts and/or require hours to do so.

cancer cell-05.png

Recovery of viable CTCs

Viable CTCs can be recovered from the platform’s microfiltration membrane, demonstrating that the shear stress exerted on cells during sample processing did not compromise their integrity.



Captured CTCs are compatible with a broad range of downstream analysis


Cell inmunostaining

Perform cell phenotypic analysis and identify diagnostic, predictive, prognostic, and/or therapeutic markers expressed in CTCs, such as AR-V7, HER-2, EGFR, and PD-L1.

Cell culture

Viable CTCs can be isolated from the sample for culture, enabling in vitro assessment of drug susceptibility/ resistance on the captured cells.

Cell sequencing

Detect mutations that could confer therapeutic susceptibility / resistance to targeted therapies. The isolated cells are compatible with traditional and next generation sequencing (NGS) technologies.

Gene expression analysis

Detect and quantify mRNA levels of specific genes using techniques, such as qRT-PCR, digital PCR, and RNA-Seq. scent probes to perform gene expression analysis using techniques, such as DNA microarrays, RT-PCR, qRT-PCR, and digital PCR.



The CytoCatch™ Isolation Platform is capable of capturing CTCs subtypes that no longer express epithelial antigens

ctc stitching 5 gif.gif

Most of the technologies developed to isolate CTCs from blood are based on sample enrichment methods that depend on specific antigen-antibody interactions, such as microfluidic devices functionalized with biomolecules that act as targeting ligands or platforms that use micro- or nano-magnetic particles coated with specific antibodies as a mean to isolate these rare cells. Although these technologies have demonstrated clinical utility, a fundamental problem of these approaches is the lack of a universal surface marker that is consistently expressed by CTCs. Most of these technologies, including the CellSearch System, which is considered the current gold standard, use EpCAM (epithelial cell adhesion molecule) antibodies to selectively trap cancer cells to the functionalized substrate/particles. However, CTCs intravasate into the bloodstream by undergoing a process known as the epithelial-mesenchymal transition (EMT), in which their epithelial phenotype is downregulated, including the expression of EpCAM antigens. This fact limits the capture of CTC subpopulations with diminished expression of this specific surface marker, thereby losing valuable information. The sample enrichment method used by the CytoCatch™ isolation platform is based on the differences in size and deformability between blood cells and CTCs, this enables the isolation of CTCs irrespective of the expressed levels of antigens in their membranes, allowing the capture of cells that would otherwise be impossible with different technologies.
